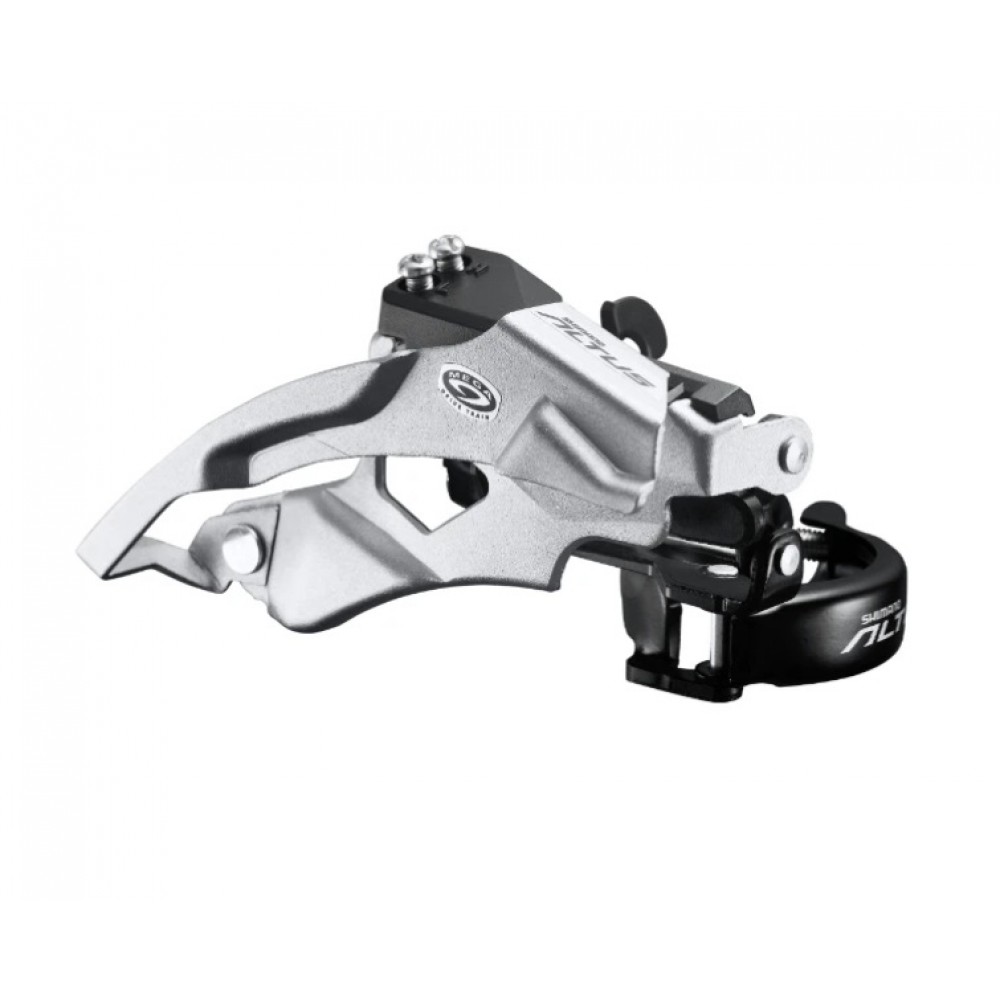

About Shimano FD-M370 Altus Front Derailleur 9 Speed (Top Swing 66-69)
Specifications
MODEL NO | FD-M370-3 |
SERIES | SHIMANO ALTUS M370 Series |
Action_Top Swing | X |
Angled clamp band design | X |
Applicable Top-Mid tooth difference | 12T |
Cable route type_Dual-Pull | X |
Chain line (mm) | 50 |
Chain stay angle | 66-69 |
Compatible chain | HG 9-speed |
Mount_Clamp Band_28.6mm | X (w/ S size adapter) |
Mount_Clamp Band_31.8mm | X (w/ M size adapter) |
Mount_Clamp Band_34.9mm | X |
Speeds_Front | 3 |
Speeds_Rear | 9 |
Top gear teeth | 44T/48T |
Total capacity | 22T |
About Shimano
Shimano Iron Works, the predecessor of Shimano Inc., was established in 1921 by Shozaburo Shimano in Sakai city, Osaka Japan. The first production was the bicycle single freewheel, required the greatest technical skill to produce. In 1951, the company’s name changed to Shimano Industrial Co.LTD.
